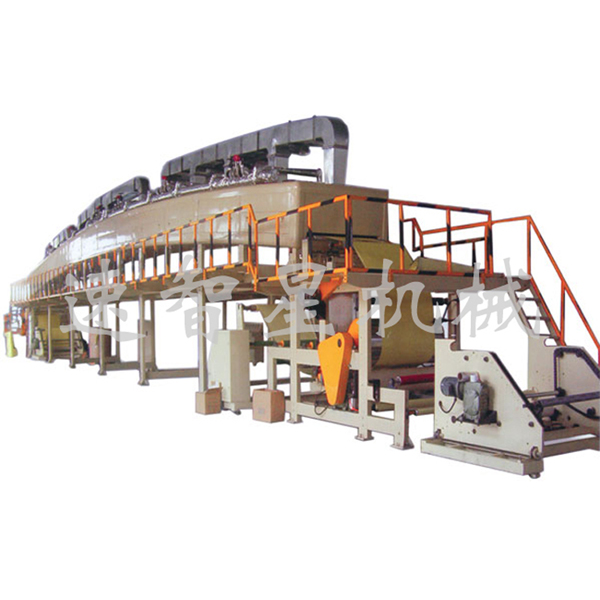

TGF Series Coating Machine
TGF Series Coating Machine Introduce
Main Function Features
The Main Purpose
Mainly for pet gold and silver sticker, fragile paper labels, laser anti-counterfeit label, can shift paper label, PVC adhesive, serial number standard paste, kraft paper adhesive tape, aluminum foil adhesive paper, thermal adhesive paper standard paste, computer printing roll label, copper plate paper sticker, writing paper sticker, coating and laminating process.
The Main Technical Parameter
Model No. | THF-11300 | THF-1600 |
Max-coating with |
300-1210MM | 300-1550MM |
Max-rewind diameter |
800MM | 1000M |
Max-unwind diameter |
1000MM | 1000M |
Machine Speed | 10-100M/min | 10-100M/min |
Heating Method | Electric/Steam/Hot Gas | Electric/Steam/Hot Gas |
Drying Oven Length | Customized According To Customer Requirements | Customized According To Customer Requirements |
Power | 45Kw | 60Kw |
Weight | 10T | 16T |

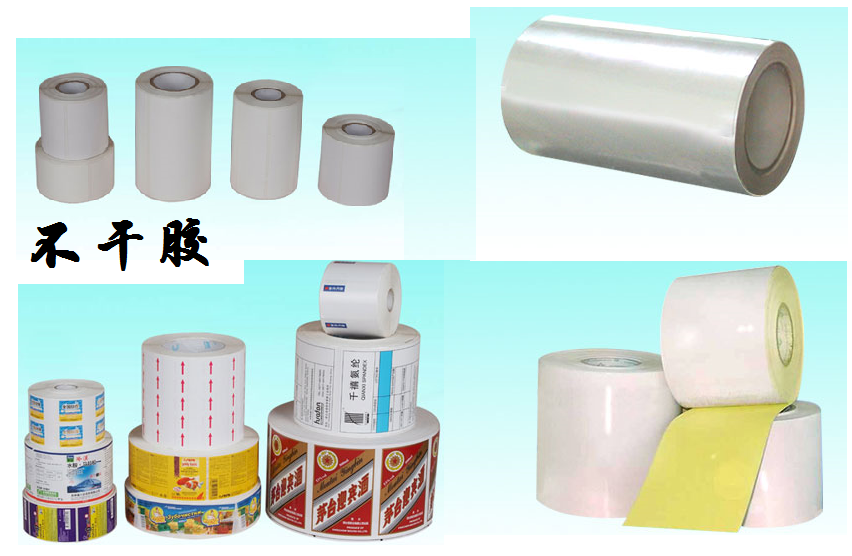

Samples
