The Main Purpose

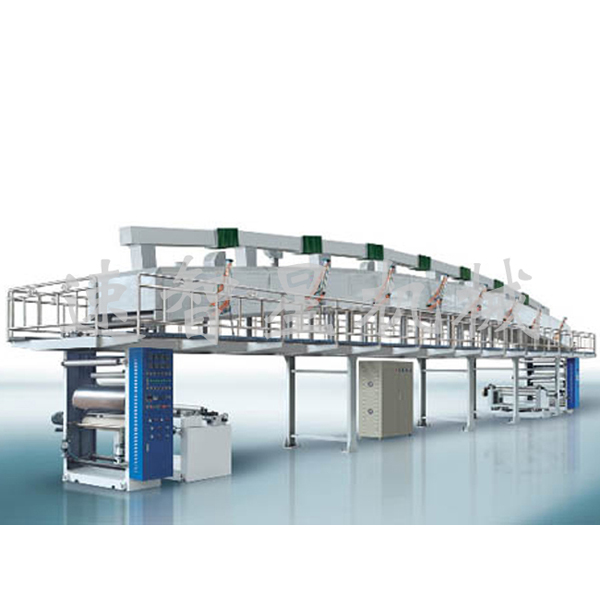

The machine imported advanced coating technology with its own production coating machines for many years experience, and is widely used in producing colour coated products.
The Main Technical Parameter
| Model No. | TGH－800/2200 |
| Coating Method | Anilox Coating |
| Coating Width | 800/2200mm |
| Guide Wheel Width and Diameter | Ф80mm×850mm |
| Rewind/Unwind Method | Single Station |
|
Max-unwind diameter |
Ø800mm |
|
Max-rewind diameter |
Ø820mm |
| Drying Oven Length | 15m |
| Heating Method | Electric//Hot Gas/Hot Wind |
| Drying Oven Tempreture | 50-200℃ |
| Working Speed | 10-130m/min |
| Machine Speed | 150m/min |
| Size | 19000×2500/3300×4800mm |
| Weight | About 13000kg |
Peformancea And Features
1. The whole machine with 4 variable frequency motor control, tension (in volume, coated, traction and rewinding) with Japanese MITSUBISHI PLC controlled automatically by the human machine interface and touch screen control display and increase the reliability of the tension of the whole machine.
2. A shelving independence, by magnetic powder automatic tension control.
3. Pattern is coated manner, coated with heavy-Scraper Axis Dual Axis Type mechanical independent roving, Scraper Control to Manual with pneumatic, free adjustment angle, coated depends on the amount of net roll of wire, different application to change between the different pattern of the roller.
4. the oven for 18 m 7 of independent temperature control, the heating with thermal oil, hot air into the heating cycle-drying system, adjustable recirculating exhaust, drug, exhaust powerfull, dry thoroughly.
5. Inside the pulley with active synchronization with the host, the drive with the drive pulley, relief materials stretched and distorted, top-of-the cylinder and wear oven film operating platform, allows the operating workers ease of work.
6. Application roller --- Hitch Steel Roll tension in the middle with a floating synchronization swing arm boards is automatically controlled by the PLC.
7. The automatic meter rate control unit
8. The adoption of corrective EPC air sensitive edge to, in order to take the volume up.
Samples
9.takes in and puts away uses the lock bolt type to be mad zhang the axis, in order to install the ex-denning ease of operation.
10. high accuracy presses the type draw gear, the steel roller cools uses the water cycle type, causes the membrane through the chilling rolls to be smoother, very blows, achieves the cooling effect.
Note
A, has custom-made the machine according to the customer different request (limited width scope is specially 300-2000mm)
B, takes in and puts away a form respectively is: The handwork lifts the material type single location, the hydraulic pressure elevating single location, the electrically operated turn over type double location, the electrically operated zipper hill climbing type double location, the electrically operated turn over wheel disk type double location and so on supplies the customer choice
C, the drying oven heating way respectively is: The electric heating, the heat conduction oil stove heating, the steam heating and so on supply the customer choice
D, spreads the cloth way respectively is: The net grain roller spreads the cloth, the double roll spreads the cloth, three rollers spreads the cloth, five rollers spreads the cloth, the comma shaving knife spreads the cloth, the gas knife spreads the cloth and so on to supply the customer choice
E, the working speed and the coating material quality, spreads the cloth thickness, the drying oven length, the drying temperature and so on is proportional
Technical Process
The parent metal puts the volume--Spreads the cloth unit---Dry unit--Hauling unit--Receives the volume machine
